cert-manager: Browser-Trusted TLS via GitOps

The bootstrap is done — ArgoCD manages the cluster from Git. This is the first component deployed entirely through the pipeline: cert-manager with Let’s Encrypt certificates via Cloudflare DNS-01 validation.

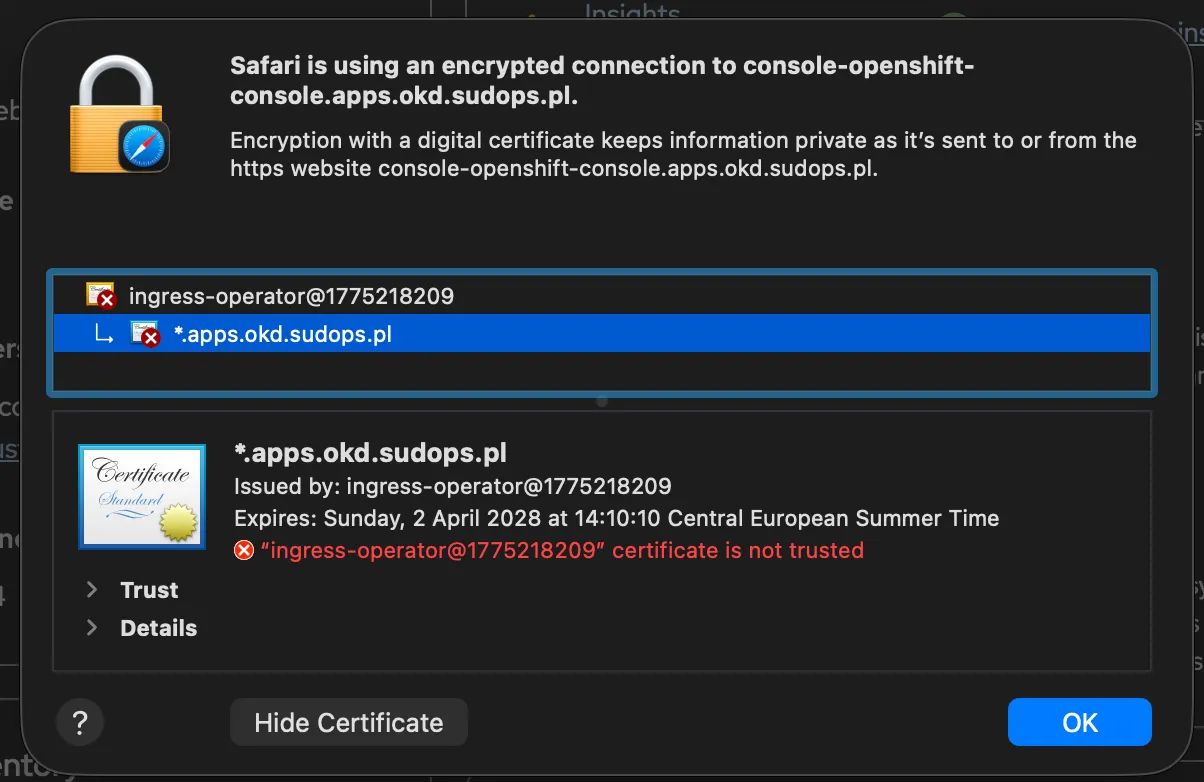

The goal: replace the self-signed ingress certificates with browser-trusted wildcards. No more “Your connection is not private” on every console login.

How DNS-01 works

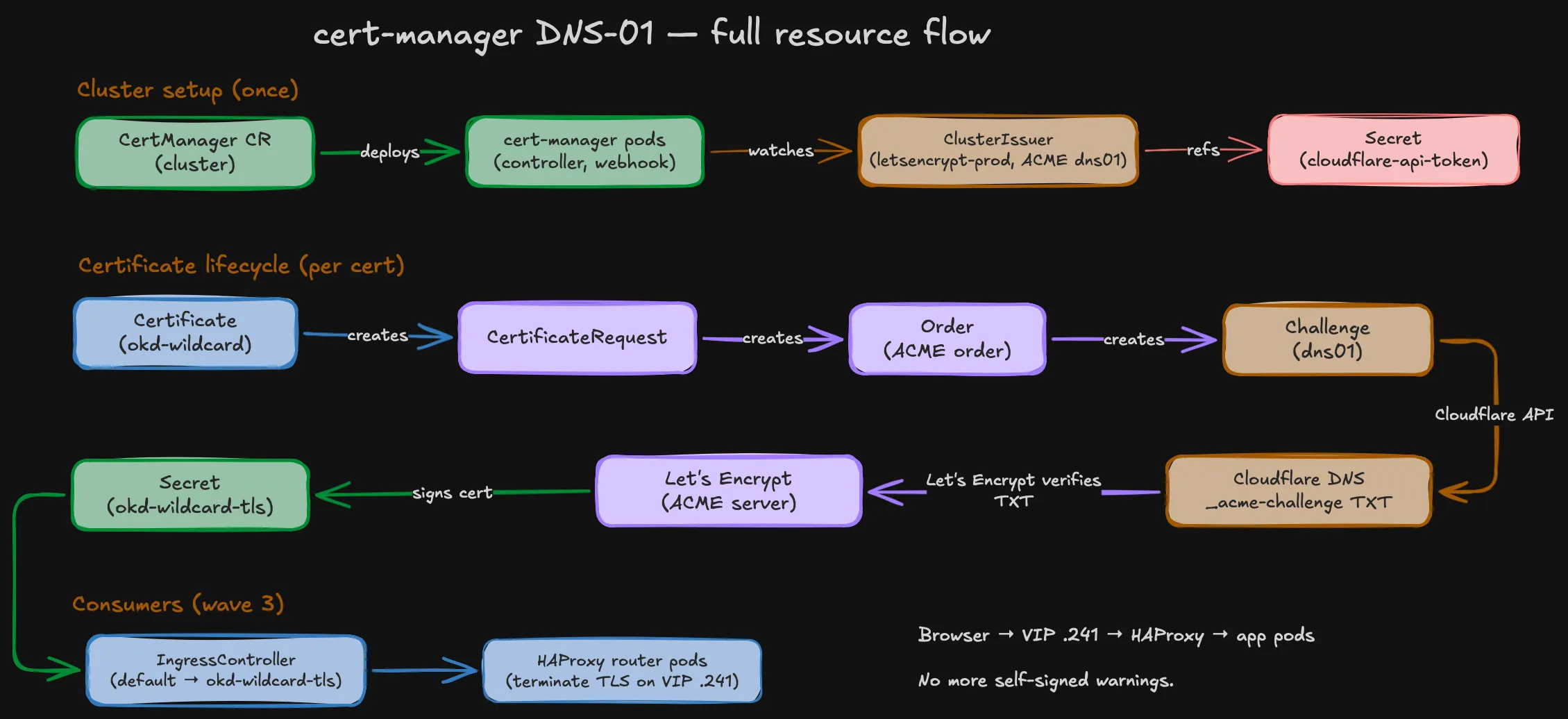

cert-manager automates TLS certificate issuance from Let’s Encrypt using the ACME protocol. The DNS-01 challenge proves domain ownership by creating a TXT record in public DNS. But there’s a full chain of Kubernetes resources behind it:

Cluster setup (once):

• CertManager CR deploys the cert-manager pods (controller, webhook, cainjector)
• ClusterIssuer defines the ACME server (Let’s Encrypt) and solver (Cloudflare DNS-01)
• Secret holds the Cloudflare API token that the issuer references

Certificate lifecycle (per cert):

1. You create a Certificate resource (e.g., okd-wildcard for *.apps.okd.sudops.pl)
2. cert-manager creates a CertificateRequest — the internal representation of “I need this cert signed”
3. The issuer creates an Order — an ACME order with Let’s Encrypt
4. The order creates a Challenge — the DNS-01 proof-of-ownership task

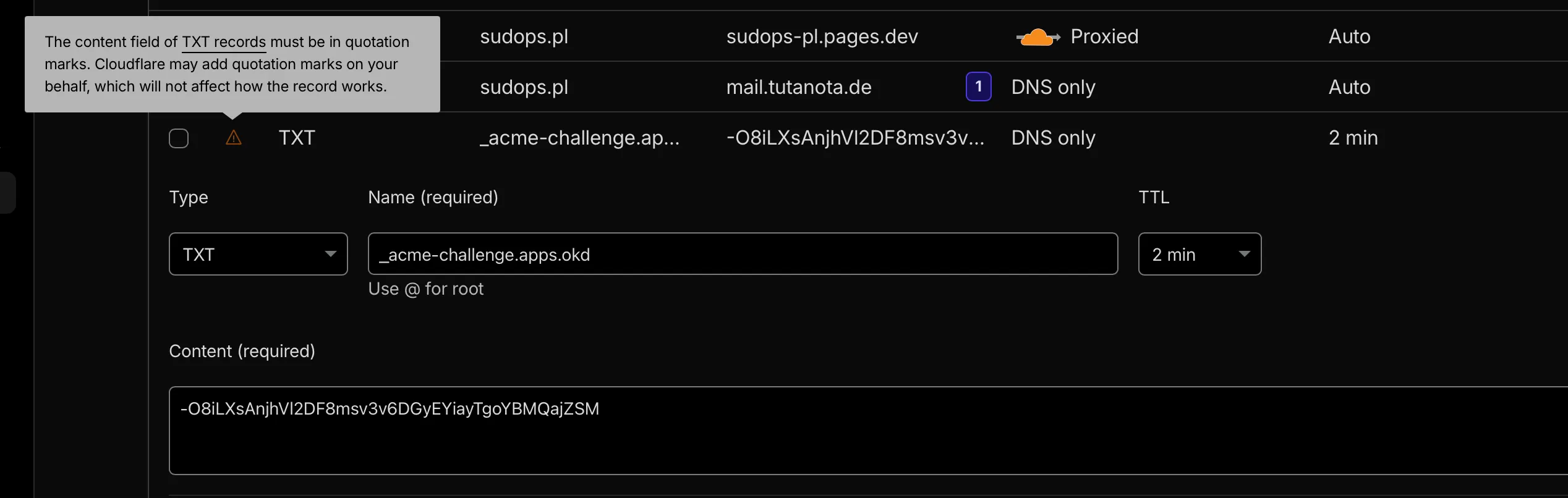

5. The challenge controller uses the Cloudflare API to create a _acme-challenge.apps.okd TXT record
6. Let’s Encrypt queries public DNS, finds the token, confirms ownership
7. Let’s Encrypt issues the signed certificate
8. cert-manager stores it in a Kubernetes Secret (okd-wildcard-tls)
9. cert-manager cleans up the TXT record and auto-renews before expiry

You can watch the whole chain in real time: oc get certificate,certificaterequest,order,challenge -A

DNS-01 is the only ACME challenge type that supports wildcard certificates. HTTP-01 (the alternative) requires Let’s Encrypt to reach your cluster on port 80 — not practical behind NAT without port forwarding.

What is an ingress controller?

Vanilla Kubernetes doesn’t ship an ingress controller — you pick one (nginx, Traefik, HAProxy). OKD ships one by default: an HAProxy-based router managed by the IngressController CR. It runs as pods on every control-plane node, listens on the Ingress VIP (192.168.1.241 via keepalived), terminates TLS, and forwards traffic to backend Services based on Route/Ingress rules.

When you open console-openshift-console.apps.okd.sudops.pl in a browser, the request hits the Ingress VIP, gets routed to an HAProxy router pod, the pod terminates TLS using whatever certificate is configured, then proxies the request to the console pod. The defaultCertificate on the IngressController CR controls which TLS cert the router uses. By default it’s self-signed. I’m replacing it with the Let’s Encrypt wildcard.

What gets deployed

Four components enabled in values.yaml, across three sync waves:

Wave 1: the operator

The cert-manager operator chart creates the namespace, OperatorGroup, Subscription, and the CertManager CR:

1
namespace: cert-manager-operator
2
channel: alpha
3
source: okderators
4
sourceNamespace: openshift-marketplace

The CertManager CR has one important override:

1
apiVersion: operator.openshift.io/v1alpha1
2
kind: CertManager
3
metadata:
4
  name: cluster
5
spec:
6
  controllerConfig:
7
    overrideArgs:
8
      - "--dns01-recursive-nameservers=1.1.1.1:53,8.8.8.8:53"
9
      - "--dns01-recursive-nameservers-only"

Without --dns01-recursive-nameservers-only, cert-manager uses the cluster’s DNS (Pi-hole, then the router via conditional forwarding). The ACME challenge TXT record lives on Cloudflare’s public DNS, not on the local resolver. If cert-manager queries Pi-hole for _acme-challenge.apps.okd.sudops.pl, Pi-hole forwards to the router (which doesn’t have the TXT record), and the challenge fails. Forcing Cloudflare (1.1.1.1) and Google (8.8.8.8) as recursive nameservers ensures cert-manager always checks public DNS for the challenge.

The one manual step: Cloudflare API token

cert-manager needs a Cloudflare API token to create DNS-01 challenge TXT records. This secret can’t live in Git as plaintext (it’s a credential), so it’s the one manual step outside the pipeline:

oc create secret generic cloudflare-api-token \
  -n cert-manager \
  --from-literal=api-token=<your-cloudflare-api-token>

The token needs Zone:DNS:Edit permission for sudops.pl. Create it in the Cloudflare dashboard under My Profile → API Tokens → Create Token → Edit zone DNS.

Later I fold this into a SealedSecret so even the token lives in Git — for now, it’s the one manual step.

Wave 2: ClusterIssuer and Certificates

The config chart creates a Let’s Encrypt ClusterIssuer and two Certificate resources:

1
email: "root@example.com"
2
cloudflare:
3
  secretName: cloudflare-api-token
4
  secretKey: api-token
5

6
certificates:
7
  - name: okd-wildcard
8
    namespace: openshift-ingress
9
    secretName: okd-wildcard-tls
10
    dnsNames:
11
      - "*.apps.okd.sudops.pl"
12
      - "apps.okd.sudops.pl"
13
  - name: api-cert
14
    namespace: openshift-config
15
    secretName: api-cert-tls
16
    dnsNames:
17
      - "api.okd.sudops.pl"

Two certificates:

okd-wildcard — covers *.apps.okd.sudops.pl and apps.okd.sudops.pl. Goes into openshift-ingress namespace as okd-wildcard-tls. Every route in the cluster (console, ArgoCD, Grafana, any app) gets a trusted cert automatically.

api-cert — covers api.okd.sudops.pl. Goes into openshift-config as api-cert-tls. The Kubernetes API server uses this so oc login doesn’t complain about certificate validation.

The ClusterIssuer uses ACME with Cloudflare DNS-01:

1
apiVersion: cert-manager.io/v1
2
kind: ClusterIssuer
3
metadata:
4
  name: letsencrypt-prod
5
spec:
6
  acme:
7
    server: https://acme-v02.api.letsencrypt.org/directory
8
    email: {{ .Values.email }}
9
    privateKeySecretRef:
10
      name: letsencrypt-prod-account-key
11
    solvers:
12
      - dns01:
13
          cloudflare:
14
            apiTokenSecretRef:
15
              name: {{ .Values.cloudflare.secretName }}
16
              key: {{ .Values.cloudflare.secretKey }}

When cert-manager processes a Certificate, it creates a TXT record on Cloudflare, Let’s Encrypt verifies it, issues the cert, and cert-manager stores it in the specified Secret. Automatic renewal before expiry.

Wave 3: consuming the certs

Two patches, both in wave 3 (after certificates are issued):

Ingress controller — tells the default ingress to use the wildcard cert instead of the self-signed one:

1
apiVersion: operator.openshift.io/v1
2
kind: IngressController
3
metadata:
4
  name: default
5
  namespace: openshift-ingress-operator
6
spec:
7
  defaultCertificate:
8
    name: okd-wildcard-tls

API server — adds the API cert as a named certificate:

1
apiVersion: config.openshift.io/v1
2
kind: APIServer
3
metadata:
4
  name: cluster
5
spec:
6
  servingCerts:
7
    namedCertificates:
8
      - names:
9
          - api.okd.sudops.pl
10
        servingCertificate:
11
          name: api-cert-tls

Verify the API cert

curl -vk https://api.okd.sudops.pl:6443 against the control-plane VIP, before and after. Before the patch, the serving cert is the default kube-apiserver-lb-signer:

1
* Server certificate:
2
*  subject: CN=api.okd.sudops.pl
3
*  issuer: OU=openshift; CN=kube-apiserver-lb-signer
4
*  SSL certificate verify result: self signed certificate in certificate chain (19), continuing anyway.

After ArgoCD syncs wave 3 and kube-apiserver finishes rolling:

1
* Server certificate:
2
*  subject: CN=api.okd.sudops.pl
3
*  issuer: C=US; O=Let's Encrypt; CN=R12
4
*  SSL certificate verify ok.

Same VIP, same port, new chain. oc login no longer needs --insecure-skip-tls-verify.

The result

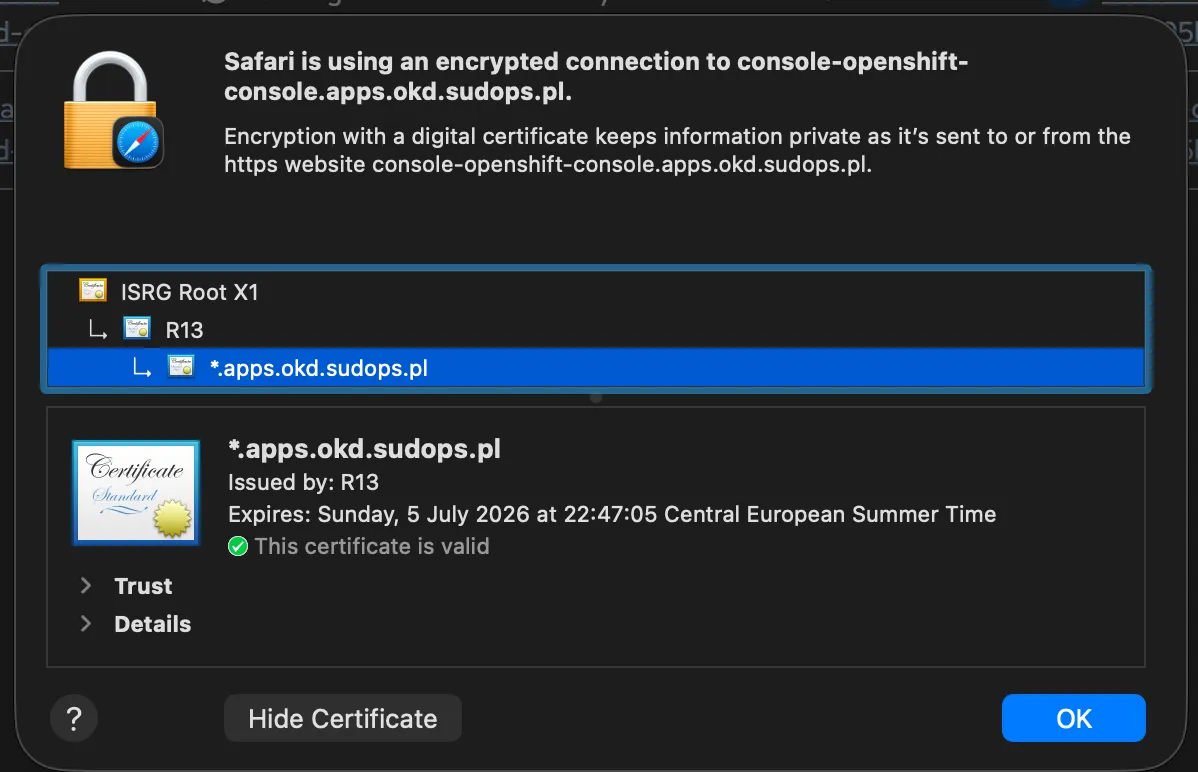

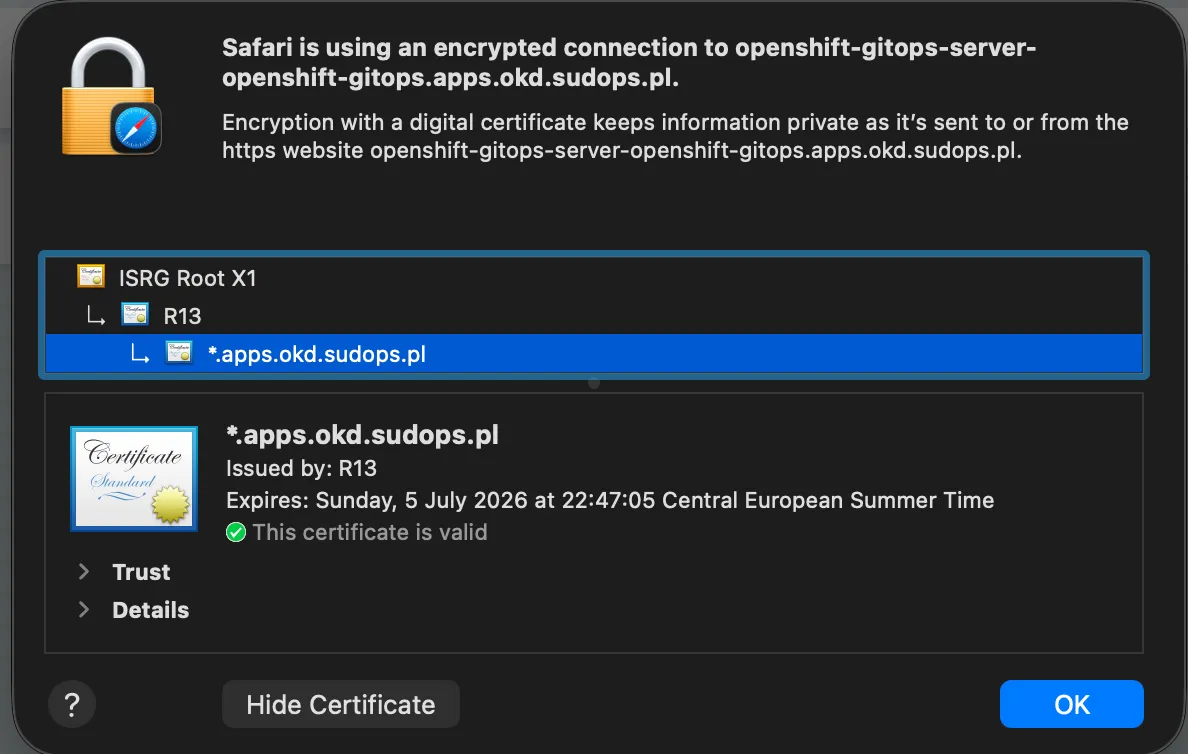

After ArgoCD syncs all three waves, every *.apps.okd.sudops.pl route serves a Let’s Encrypt certificate. ISRG Root X1 → R13 → *.apps.okd.sudops.pl. Browser-trusted, auto-renewing.

No more clicking through certificate warnings. No private CA to distribute to devices. Let’s Encrypt does the work, cert-manager automates it, ArgoCD manages the config.

What was committed

Four entries added to bootstrap/root-app/values.yaml:

1
cert-manager-operator:
2
  enabled: true
3
  path: components/operators/cert-manager
4
  namespace: cert-manager-operator
5
  syncWave: "1"
6

7
cert-manager-config:
8
  enabled: true
9
  path: components/cluster-config/cert-manager-config
10
  namespace: cert-manager
11
  syncWave: "2"
12

13
ingress-controller:
14
  enabled: true
15
  path: components/cluster-config/ingress-controller
16
  namespace: openshift-ingress-operator
17
  syncWave: "3"
18

19
api-server:
20
  enabled: true
21
  path: components/cluster-config/api-server
22
  namespace: openshift-config
23
  syncWave: "3"

One git push. ArgoCD synced all four. The only thing outside Git is the Cloudflare API token Secret.

Next: storage network — NMState NNCPs for the 10GbE Mellanox ports.
